Introduction to MHD093C-058-NP0-BA Motor

I. General Overview

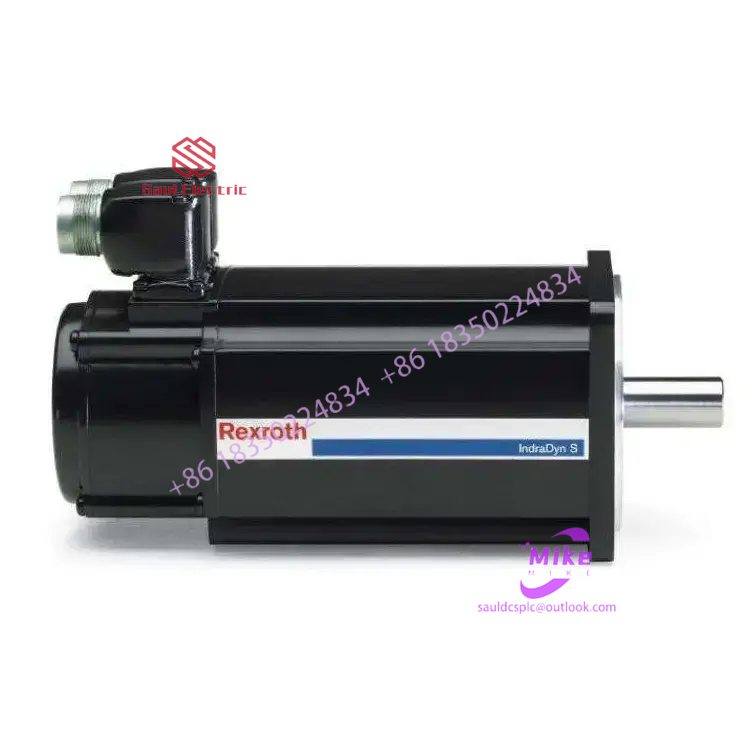

The MHD093C-058-NP0-BA is a high-performance synchronous servo motor produced by Bosch Rexroth, belonging to the IndraDyn S series. This motor is widely used in industrial automation due to its high torque, high speed, high precision, and excellent environmental adaptability.

II. Key Features

1. High Torque Output:
   • The maximum torque can reach 631Nm, meeting the needs of various high-load applications.
   • Smooth torque output with minimal fluctuations ensures stable equipment operation.
2. Wide Speed Range:
   • The maximum speed can reach 9000rpm, suitable for applications requiring high-speed operation.
   • A wide speed adjustment range allows for flexible adjustments based on actual needs.
3. High-Precision Control:
   • Equipped with a multi-turn absolute Hiperface encoder with an increment of 128, providing high-precision position feedback.
   • High encoder resolution ensures precise and stable motor movement.
4. Excellent Environmental Adaptability:
   • High protection class, typically IP65 or above, enabling stable operation in harsh environments.
   • Optional liquid cooling system available to handle heat dissipation in high-power applications.
5. Compact Structure:
   • The motor is designed to be compact, with a small size and light weight, facilitating easy installation and maintenance.
   • Flat shaft design with shaft sealing rings prevents dust and moisture from entering the motor interior.

III. Application Scenarios

The MHD093C-058-NP0-BA motor is widely used in various industrial automation fields requiring high precision and high torque, including but not limited to:

1. Robot Arms:
   • Provides high torque and precise position control, ensuring flexible movement and accurate positioning of robot arms.
2. Automated Production Lines:
   • Used to drive various automated equipment, such as conveyors and assembly machines, improving production efficiency and product quality.
3. Packaging Machinery:
   • Suitable for high-speed packaging machinery, such as filling machines and sealing machines, ensuring stable and accurate packaging processes.
4. Conveyor Systems:
   • Used to drive conveyor belts, rollers, and other conveying equipment, enabling fast and accurate material transportation.

IV. Technical Parameters

• Rated Power: Varies depending on the specific model and application scenario, but typically meets the needs of high-load applications.
• Rated Voltage: Usually an AC voltage, with the specific value determined by the motor model and配套 (matching) drive.
• Rated Current: Determined based on the motor power and voltage, ensuring stable motor operation under rated conditions.
• Encoder Type: Multi-turn absolute Hiperface encoder, providing high-precision position feedback.
• Protection Class: Typically IP65 or above, ensuring stable motor operation in harsh environments.
• Cooling Method: Natural convection cooling or optional liquid cooling system, selected based on application scenario and power requirements.

This introduction provides a comprehensive overview of the MHD093C-058-NP0-BA motor, highlighting its key features, application scenarios, and technical parameters.

Increase the voltage

In the form of energy conversion in the motor, the loss of electrical energy is manifested as copper loss,

and its influencing factors includecurrentandresistance. If the designer finds that the copper loss is too large,

the simplest solution is to increase the working voltage. For example, for a motor with an input power of 500W,

if its working voltage is 10V, it means that the current must be 50A, because the input power is the product of voltage

and current. However, if we increase the voltage to 100V, the current only needs to be 5A. Since the relationship between

copper loss and current is quadratic, the copper loss will be reduced by 100 times after the voltage is increased.

This also explains why the working voltage of recent electric vehicles tends to develop to 800V.

Improve the slot utilization rate of ****

When it is not possible to increase the voltage, we often need to find ways to reduce the resistance.

The most straightforward strategy is to increase the cross-sectional area of the conductor. In the field of motors,

this has led to discussions on how to improve slot fill factors, and has resulted in new technologies such as

flat angle winding wires, which are varnished wires designed to achieve the goal of improving motor efficiency.
