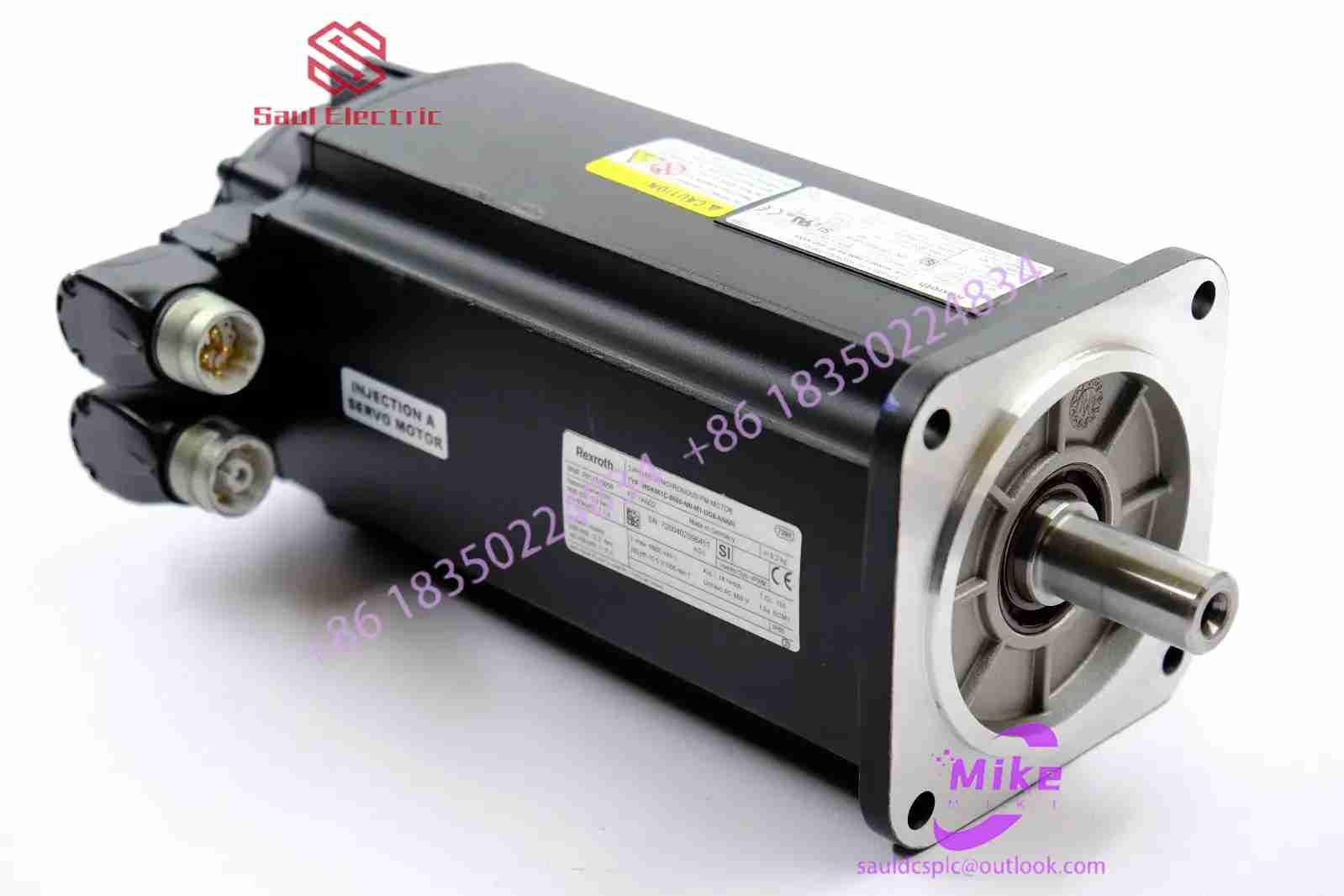

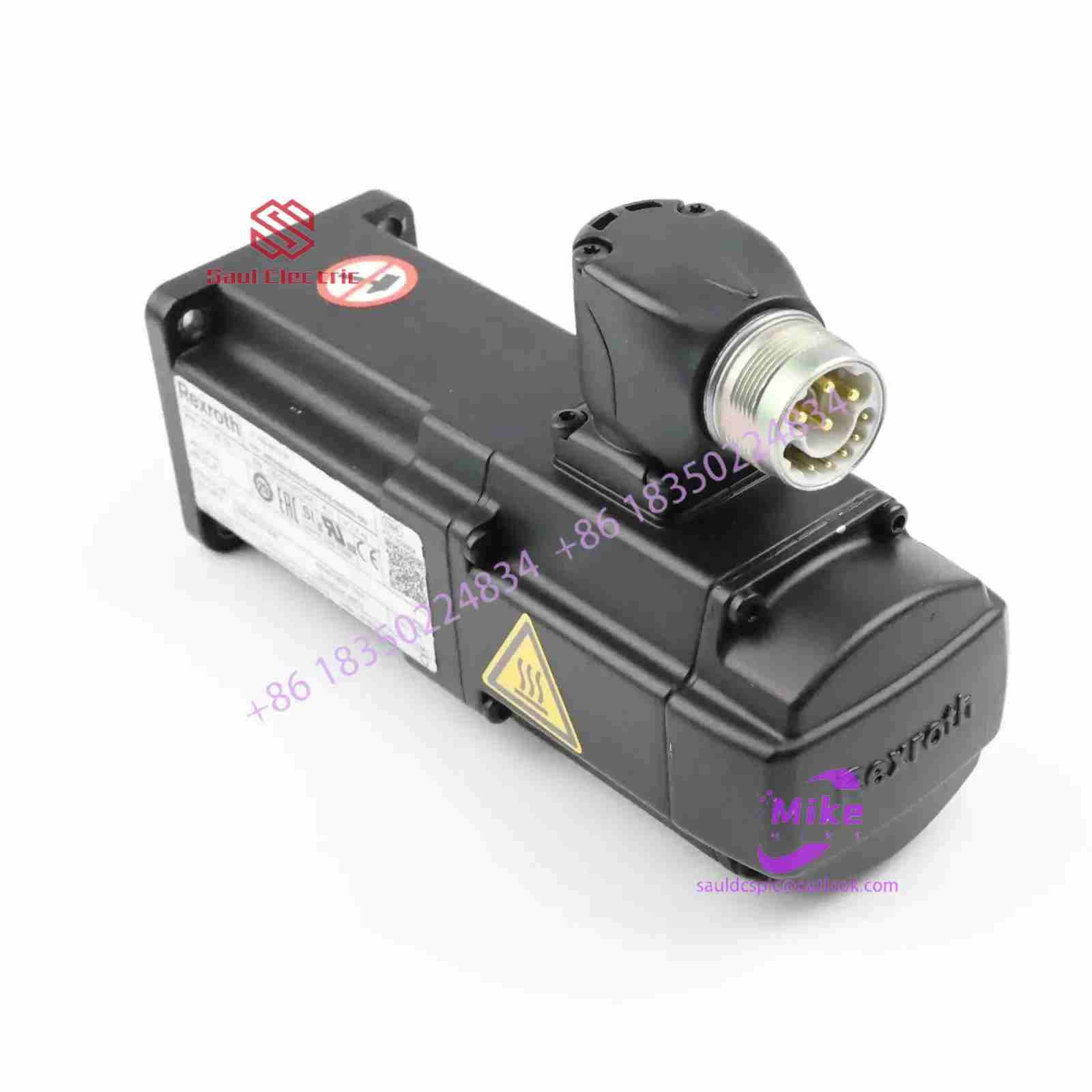

Introduction to KSM01.2B-061C-35N-M1-HP0-SE-NN-D7-NN-FW Motor

I. General Overview

The KSM01.2B-061C-35N-M1-HP0-SE-NN-D7-NN-FW is a high-performance synchronous servo motor produced by Bosch Rexroth, belonging to the IndraDyn S series. This motor is widely used in industrial automation due to its high torque, high speed, high precision, and excellent environmental adaptability.

II. Key Features

1. High Torque Output:
   • The maximum torque can reach 631Nm, meeting the needs of various high-load applications.
   • Smooth torque output with minimal fluctuations ensures stable equipment operation.
2. Wide Speed Range:
   • The maximum speed can reach 9000rpm, suitable for applications requiring high-speed operation.
   • A wide speed adjustment range allows for flexible adjustments based on actual needs.
3. High-Precision Control:
   • Equipped with a multi-turn absolute Hiperface encoder with an increment of 128, providing high-precision position feedback.
   • High encoder resolution ensures precise and stable motor movement.
4. Excellent Environmental Adaptability:
   • High protection class, typically IP65 or above, enabling stable operation in harsh environments.
   • Optional liquid cooling system available to handle heat dissipation in high-power applications.
5. Compact Structure:
   • The motor is designed to be compact, with a small size and light weight, facilitating easy installation and maintenance.
   • Flat shaft design with shaft sealing rings prevents dust and moisture from entering the motor interior.

III. Application Scenarios

The KSM01.2B-061C-35N-M1-HP0-SE-NN-D7-NN-FW motor is widely used in various industrial automation fields requiring high precision and high torque, including but not limited to:

1. Robot Arms:
   • Provides high torque and precise position control, ensuring flexible movement and accurate positioning of robot arms.
2. Automated Production Lines:
   • Used to drive various automated equipment, such as conveyors and assembly machines, improving production efficiency and product quality.
3. Packaging Machinery:
   • Suitable for high-speed packaging machinery, such as filling machines and sealing machines, ensuring stable and accurate packaging processes.
4. Conveyor Systems:
   • Used to drive conveyor belts, rollers, and other conveying equipment, enabling fast and accurate material transportation.

IV. Technical Parameters

• Rated Power: Varies depending on the specific model and application scenario, but typically meets the needs of high-load applications.
• Rated Voltage: Usually an AC voltage, with the specific value determined by the motor model and配套 (matching) drive.
• Rated Current: Determined based on the motor power and voltage, ensuring stable motor operation under rated conditions.
• Encoder Type: Multi-turn absolute Hiperface encoder, providing high-precision position feedback.
• Protection Class: Typically IP65 or above, ensuring stable motor operation in harsh environments.
• Cooling Method: Natural convection cooling or optional liquid cooling system, selected based on application scenario and power requirements.

This introduction provides a comprehensive overview of the KSM01.2B-061C-35N-M1-HP0-SE-NN-D7-NN-FW motor, highlighting its key features, application scenarios, and technical parameters.

Variable frequency motor

Frequency conversion motor is a motor that can adjust the power frequency within a certain range

. It uses frequency converter to convert the constant power frequency into a variable frequency, thus achieving precise

control of the motor speed. The principle of the frequency conversion motor is also based on electromagnetic induction,

but compared with the power frequency motor, it adds the key component of the frequency converter to achieve frequency regulation.

Three, main differences

How it works and performance

Frequencyynchronous motors: operate at a constant power frequency, with relatively fixed speed and torque.

Due to their relatively simple structure, frequencyynchronous motors have high reliability and low maintenance costs. However,

their speed and torque are difficult to control and regulate, with low precision, making them unsuitable forhigh-precision control要求的应用。

Variable frequency motor: By regulating the power frequency through the frequency converter, precise control of the speed and torque is achieved.

The variable frequency motor has higher flexibility and adaptability, capable of meeting the demands of various complex working conditions. In addition,

the variable frequency motor also has the advantages of energy saving, high efficiency, and low noise.
